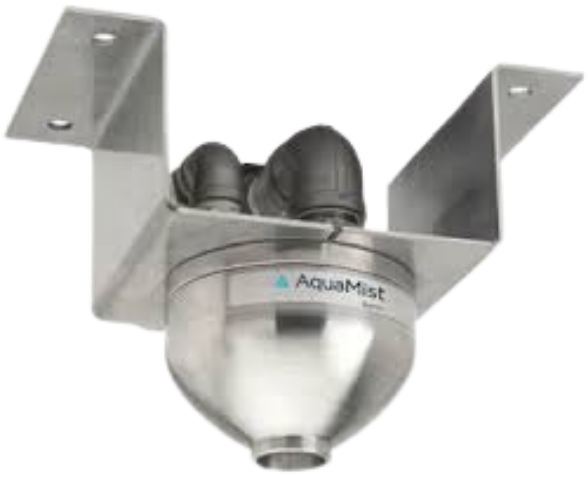

AquaMist SONIC is a revolutionary fire suppression system for Class B fire protection, utilizing liquid atomization technology with a 100% high-precision stainless steel construction. With no moving parts inside, this system offers extreme reliability and a variety of mounting options to simplify installation.

Operating at pressures below 8 bar, AquaMist SONIC can produce ultra-fine water droplets (10 microns), significantly smaller than those from conventional sprinklers, resulting in greater efficiency and water savings. This system is registered and approved for protection against flammable liquid hazards (FM Protocol 5580), covering spaces ranging from 4,591 to 36,727 cubic feet (up to ±1,040 m³).

Features:

• Twin-fluid technology using water and nitrogen as media, environmentally friendly and non-toxic.
• Produces ultra-fine water droplets of only 10 microns, smaller than conventional sprinklers (1,000 microns).
• 100% stainless steel construction with no internal moving parts, durable and low maintenance.
• Low-pressure operation (below 8 bar), more energy and water efficient.
• Atomization capacity up to 1.5 trillion water droplets per second.
• Coverage area up to 121 m² per nozzle (1,302 ft²), ideal for large spaces.
