Inergen Clean Agent Fire Suppression Systems

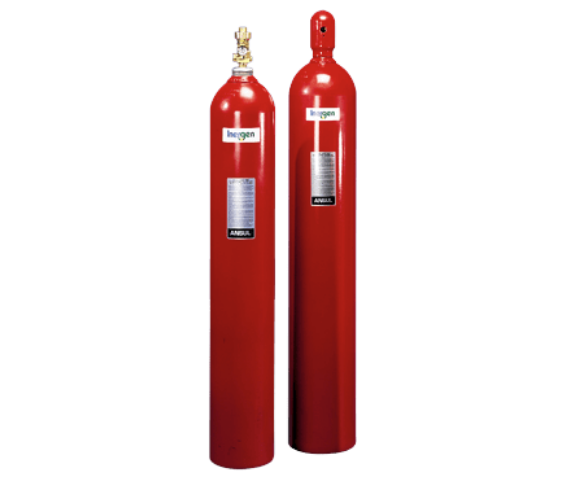

The INERGEN® 300 Bar Fire Suppression System equipped with iFLOW™ Technology is a cutting-edge fire protection solution designed for high-risk and mission-critical environments. Using a patented inert gas blend (52% nitrogen, 40% argon, and 8% carbon dioxide), this clean agent system suppresses fires without causing damage to sensitive equipment or endangering human life. INERGEN® leaves no residue, is non-conductive, and completely safe for use in occupied spaces.
The 300 bar cylinder system, enhanced with iFLOW™ technology, ensures reduced pressure peaks, simplified pipe design, and faster installation. This makes it ideal for complex or large-area applications where efficiency, safety, and environmental responsibility are priorities.
Uses naturally occurring gases: nitrogen, argon, and carbon dioxide
Safe for occupied areas – allows continued breathing during discharge
Zero ozone depletion potential (ODP = 0)
No fogging, no residue, no water damage
Electrically non-conductive – safe for electronic equipment
iFLOW™ technology provides optimal flow and pressure control
300 bar cylinders reduce storage space requirements
Reliable and proven extinguishing performance
Complies with NFPA 2001 and ISO 14520 standards
Cylinder Pressure: 300 bar
Gas Composition: 52% N₂, 40% Ar, 8% CO₂
System Technology: iFLOW™ with differential pressure valve
Discharge Time: ≤ 60 seconds
Design Concentration: 34%–50% (depending on volume and hazard)
Approvals: NFPA 2001, ISO 14520
Safety: Safe for occupied areas, no fogging
Storage Temp: -20°C to +50°C
Piping: Long pipe runs with smaller diameter possible
Environmental Impact: ODP = 0, GWP = 0
Data centers
Server rooms
Control rooms
Telecommunication hubs
Hospitals and cleanrooms
Military facilities
Museums and archives
