Inergen Clean Agent Fire Suppression Systems
Product Description (SEO Friendly):

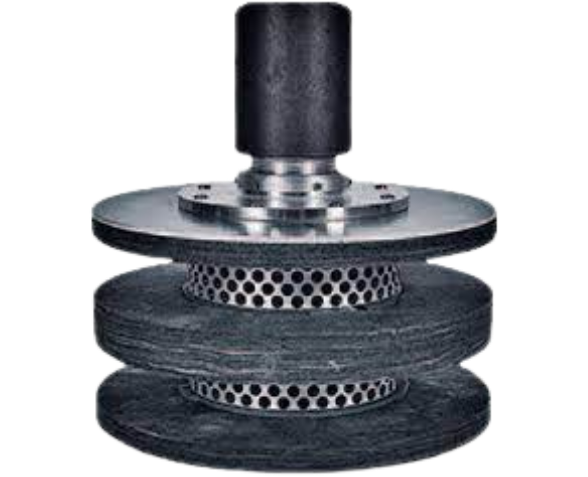

The ANSUL Acoustic Nozzle is an innovative solution designed to reduce sound pressure levels during the discharge of clean agent fire suppression systems, such as FM-200® or Novec™ 1230. Engineered for sensitive environments, it minimizes noise impact to protect personnel, delicate electronics, and prevent acoustic damage—especially in confined or occupied spaces like data centers, control rooms, and laboratories.
By redirecting and slowing the discharge velocity of the agent through a dual-chamber and perforated shroud design, the nozzle delivers effective suppression with reduced peak noise.
Reduces sound pressure levels significantly during discharge
Compatible with FM-200® and Novec™ 1230 agents
Non-corrosive stainless steel and aluminum construction
Ideal for use in noise-sensitive environments
Easy to install and maintain
Tested and validated to meet industry standards
Two orifice sizes: 3/8 in. and 1/2 in. BSPT thread
Material: Stainless Steel and Aluminum
Finish: Black Anodized
Orifice Sizes Available:
3/8 in. BSPT Thread
1/2 in. BSPT Thread
Height: 6.14 in. (156 mm)
Diameter: 5.75 in. (146 mm)
Weight: 1.1 lbs (0.5 kg)
Sound Reduction: Designed to reduce discharge noise level compared to standard nozzles
Limitations:
Max nozzle pressure: 360 psi (24.8 bar)
Agent discharge limited to 20 lbs/sec (9.1 kg/s)
Max flow rate: 50 lbs (22.7 kg) per nozzle
Data centers
Telecommunication facilities
Control rooms
Healthcare facilities
Laboratories
Rooms with sensitive electronics or acoustic equipment
